GENUDYN® OA Knee Orthosis

GENUDYN® OA Knee Orthosis for dynamic relief and stabilisation of the medial or lateral compartment.

The correction pressure can be easily adjusted to individual requirements by means of a rotary knob. Large correction pads allow comfortable power transmission to the leg. Maximum relief is achieved with full extension and slight flexion. When sitting or swinging, the orthosis adjusts automatically and there is no correction pressure.

Article No.: 07788 (medial version) – medial / varus gonarthrosis, genu varum, bow legs, valgising effect

Article No.: 07789 (lateral version) – lateral / valgus gonarthrosis, genu valgum, knock knees, varising mode of action

Size guide

Article No.: medial 07788 · lateral 07789

Please choose left or right when ordering.

Indications

• All indications and complaints for which a unicompartmental load reduction is necessary
• Conservative / post-operative knee
• Pain reduction and relief of the medial or lateral compartment in gonarthrosis
• Slight varus / valgus malpositions

Effectiveness

• Dynamic relief of the medial or lateral compartment with a 3-point principle
• Physiological guidance and stabilisation of the knee with a 4-point principle

Technology

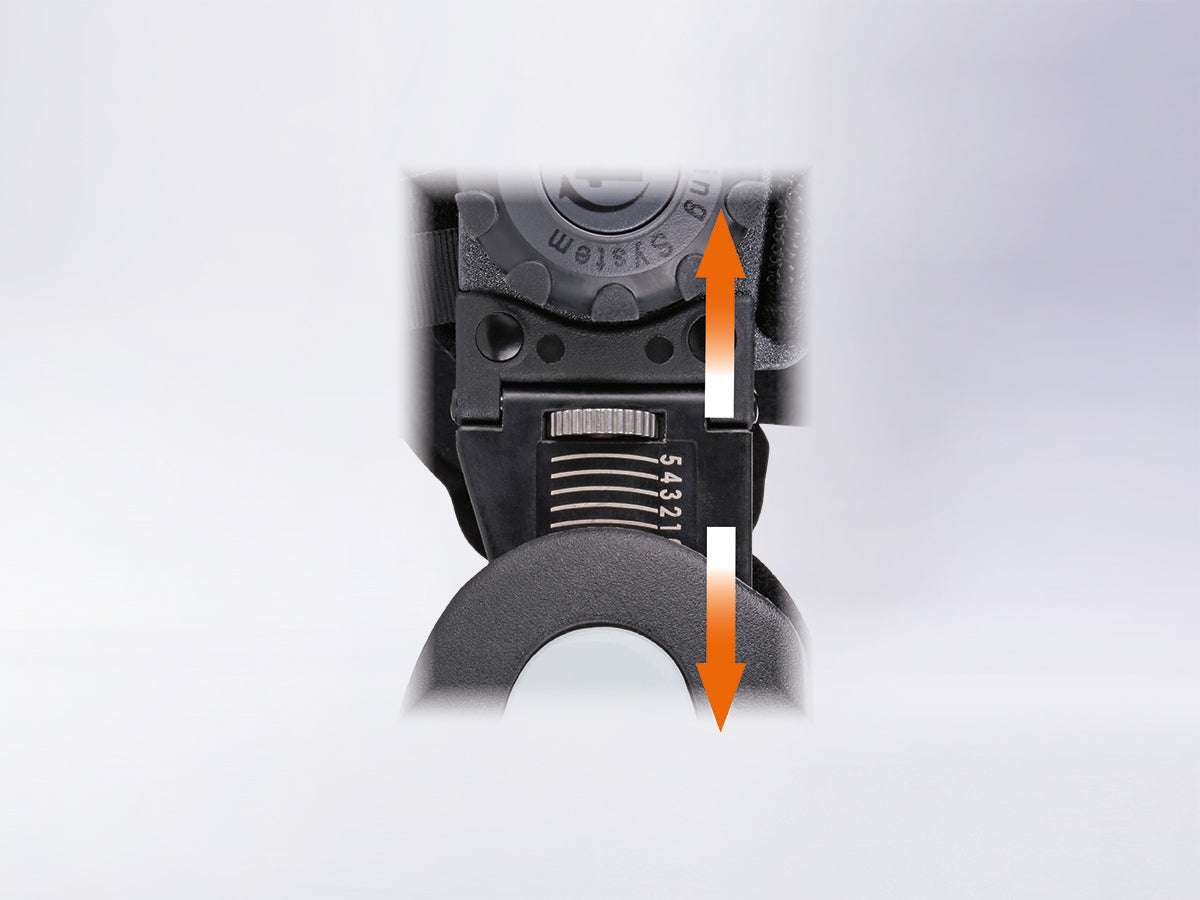

• Individual setting and relief: the correction pressure can be easily adjusted to individual requirements using the rotary knob
• Extension: 0°, 20°, 30°, 40°
• Flexion limitation 45°, 60°, 75°, 90°
• LIVING HINGE: maximum relief with full extension and slight flexion; when sitting or swinging, the orthosis adjusts automatically and no correction pressure is applied
• Mouldable orthotic frame
• Ventral frame: simply position without stepping in
